1. Overview

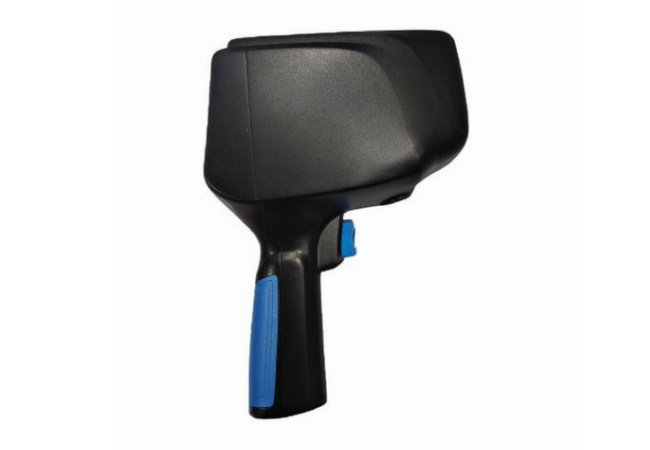

The BT7320 Hand-held Radar Flow Meter is a lightweight, ultra-portable, and non-contact water velocity measuring instrument designed for complex and rugged field environments. Equipped with a 24GHz planar array radar and self-developed velocity calculation algorithms, the BT7320 delivers instant, accurate flow speed readings up to 100 meters away. Featuring an IP68 protection level, dual-mode power supply, and automatic vertical tilt compensation, it is an ideal tool for river surveys, sewage pipe monitoring, flood emergency response, and oceanographic research.
2. Functional Features
- Compact and portable design, comfortable to hold, suitable for non-contact measurements in complex environments.

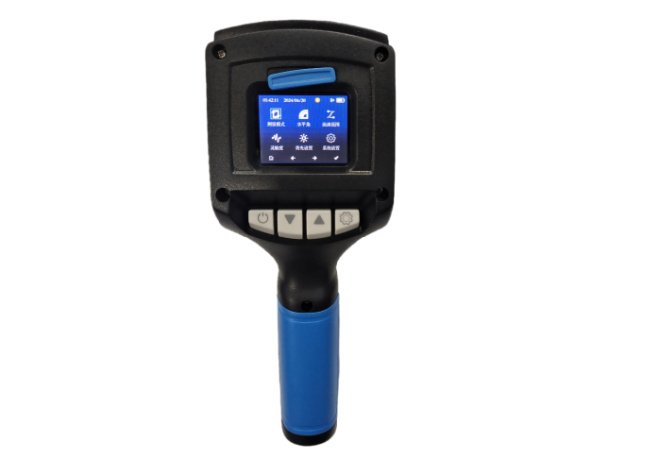

- Customizable LCD screen and display program, providing real-time flow velocity, average flow velocity, tilt angle data, and other information during the measurement process.
- Storage of over 1000 measurement results, allowing for data retrieval, deletion, and transmission at any time.
- Supports bracket fixation and Bluetooth configuration, unaffected by harsh weather conditions, providing more comfortable and convenient operation.
- Ultra-low power consumption design, dual-mode power supply (rechargeable lithium battery/dry battery), ensuring all-weather response for emergency measurements.
- Self-developed core measurement module and velocity calculation algorithm, adapting to various complex wave environments, ensuring stable and reliable flow velocity measurements.
3. Product Parameters
| Velocity Range | 0.05m/s-30m/s |
| Frequency | 24GHz |
| Range | 100m |
| Velocity Accuracy | ±0.01m/s,±1%FS |
| Antenna | Planar array antenna, 12°×25° angle automatic compensation |
| Compensation Range | Manual compensation in the horizontal direction (0-60°), automatic compensation in the vertical direction (30-70°) |
| Protection Level | IP68 |
| Functional Modes | Fast measurement mode / Continuous measurement mode |
| Power Supply | Rechargeable lithium battery (8000mAh), continuous operation for 9 hours, standby for 26 hours |
| Power Modes | Supports dual-mode power supply (rechargeable lithium battery/dry battery), dry batteries can be used for emergency power supply |
| Operating Temperature | -35~80℃ |

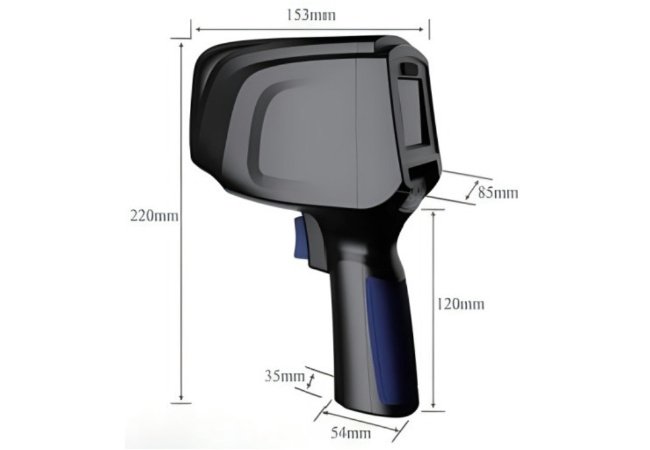

| Product Dimensions | Refer to the product dimension diagram |
| Weight | 470g |
4. Application Scenarios
-
River & Hydrological Surveys: Essential for stream gauging, flood warning, hydrological research, and water resource monitoring without stepping into dangerous currents.
-
Wastewater & Sewage Networks: Ideal for non-contact velocity tracking in wastewater treatment plants, industrial drainage, underground culverts, and sewer lines.
-
Oceanographic & Coastal Research: Used in marine engineering, tidal flow velocity research, and ocean dynamics measurement.
-
Emergency & Disaster Response: Rapid deployment for flash flood monitoring and urban waterlogging measurements during rainy seasons.
