Naming conventions for Pressure Transmitters

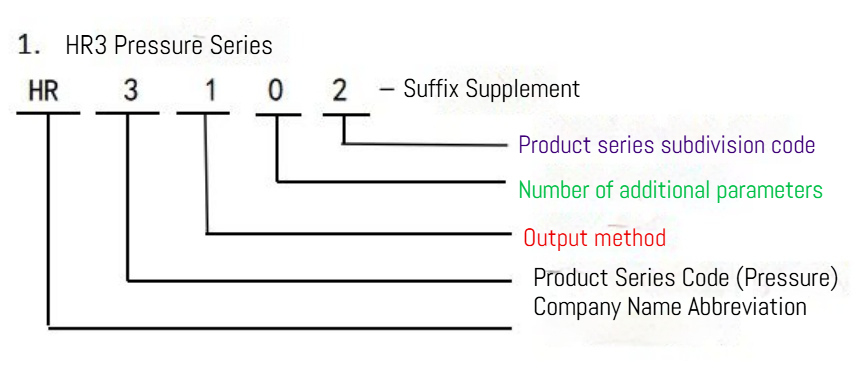

Naming conventions for pressure transmitters

Product series code: 3 represents pressure;

Output mode: 1-485, 2-analog signal

Number of additional parameters: 0---no additional parameters, 1---with temperature;

Series product subdivision code: 0-Hissman outlet, 2-liquid level outlet, 8-2088 head

Supplement: Generally, it is a threaded interface such as: M20*1.5; G1/2, etc., or additional size requirements.

Example:

1.HR3112-G1/2--pressure-485-with temperature-liquid level outlet-G1/2 threaded interface;

2.HR3200-M20*1.5--pressure-(4-20)mA-without temperature-Hissman outlet-M20*1.5 thread
